Collection: Rail Clips

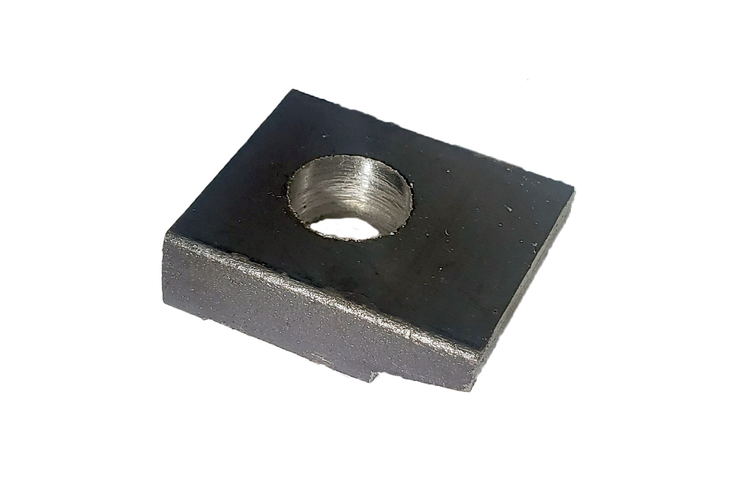

Kimes Steel & Rail, Inc. manufactures a wide variety of single piece rail clips for securing Tee and crane rails to ties, beams, channels and other support structures.  All single hole clips are manufactured in our plant in West Virigina using domestic steel.  Clips are all weldable, unless noted otherwise.  Clips with oval, nonstandard round or other holes can be quoted upon request.  Typical lead times for nonstock clips are one to two weeks for orders under 5,000 pieces.

 Clip No.

Rail

Weight

Bolt

Drawing

Model

114

12, 16, 20, 25, 30, 40 lb ASCE

0.24lb / 0.11kg

5/8"

PNG

PDF

STEP

103

55, 60, 65, 70, 75, 80, 85, 90, 100 lb ASCE & ARA-RA

0.58lb / 0.26kg

3/4"

PNG

PDF

STEP

106

 60, 65, 70, 75, 80, 85, 90, 100 lb ASCE & ARA-RA

1.15lb / 0.52kg

3/4"

PNG

PDF

STEP

128

80, 90, 100 ARA-RB

0.89 lb / 0.40kg

3/4"

PNG

PDF

STEP

62

100 lb ASCE, 100, 110, 115, 120, 130, 131, 132, 136 lb RE, 104, 105 lb Crane Rail

1.3lb / 0.59kg

1"

PNG

PDF

STEP

175

175 lb Crane Rail

2.1lb / 1.1kg

1"

PNG

PDF

STEP
