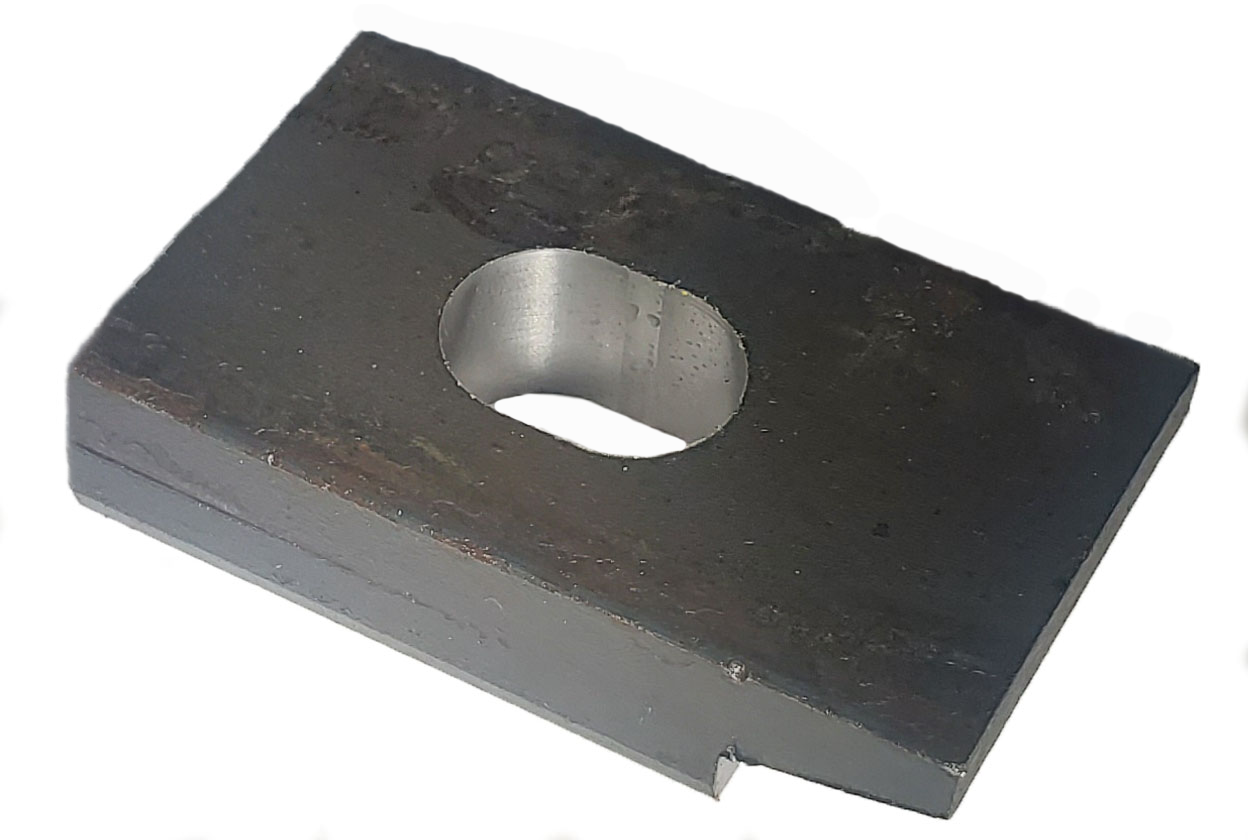

Rail clip 106 60 lb to 100 lb 25/32"x1-1/16" Oval Hole
Rail clip 106 60 lb to 100 lb 25/32"x1-1/16" Oval Hole
Item Number: 2300106
Regular price
$2.68 USD
Regular price
Sale price
$2.68 USD
Unit price
/
per
125 in stock
Use the 106 clip on the following Tee and crane rails:
60, 65, 70, 75, 80, 85, 90, 100 lb ASCE & ARA-RA
Clips can be bolted or welded.

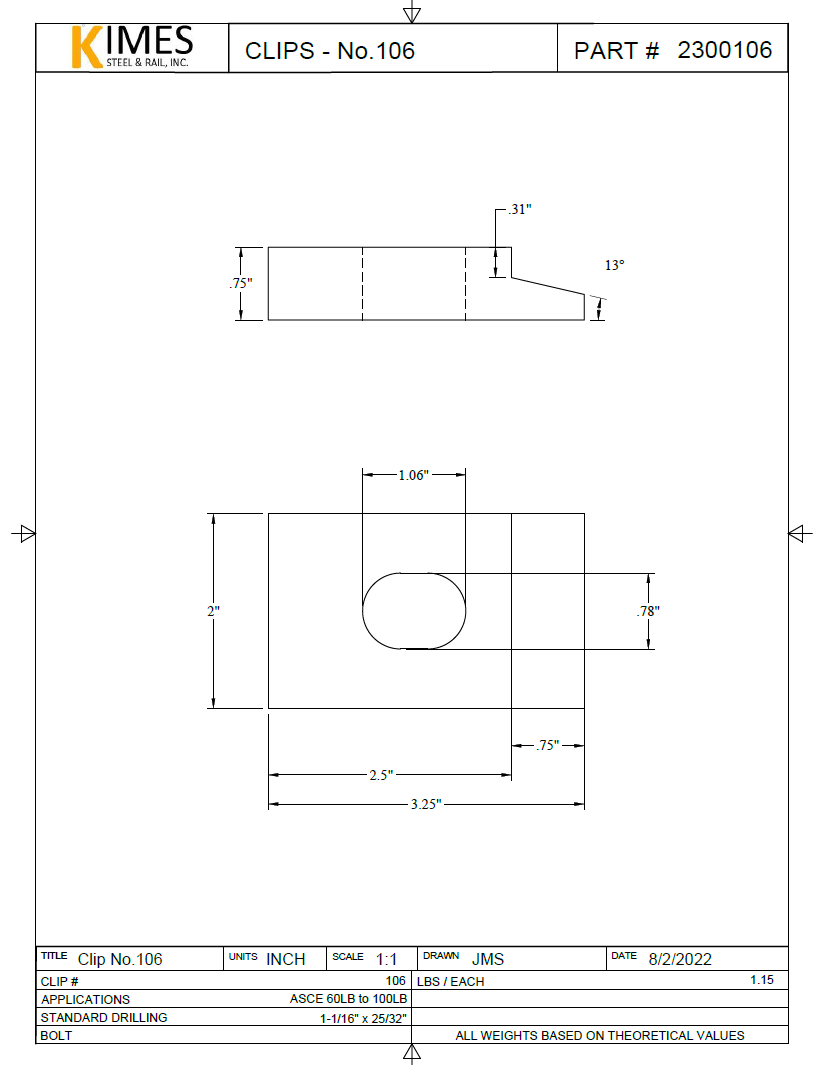

Drawing PDF
CAD Model STEP File Download CAD
Couldn't load pickup availability
Specifications
Specifications
Origin: WV, USA
Weight: 1.24 lb
Material: Steel
Height: 0.75 in
Width: 2 in
Depth / Length: 3.25 in
