60 lb ASCE New Rail 30' Holes 2-1/2"x5" 600 lb/pc
60 lb ASCE New Rail 30' Holes 2-1/2"x5" 600 lb/pc
Item Number: 2160360
Out of stock
Rail lengths over 10'0" must be shipped via flatbed. You can order online and select local pickup, when we receive your order, we will provide you with a shipping quote. Otherwise use the contact us form or give us a call with: rail size, lengths, pieces and shipping destination city, state and zip code. Also let us know any special services required such as: residential delivery, appointment required or times outside standard hours to accept deliveries. We will provide you with a shipping quote within 24 hours, usually the same day.

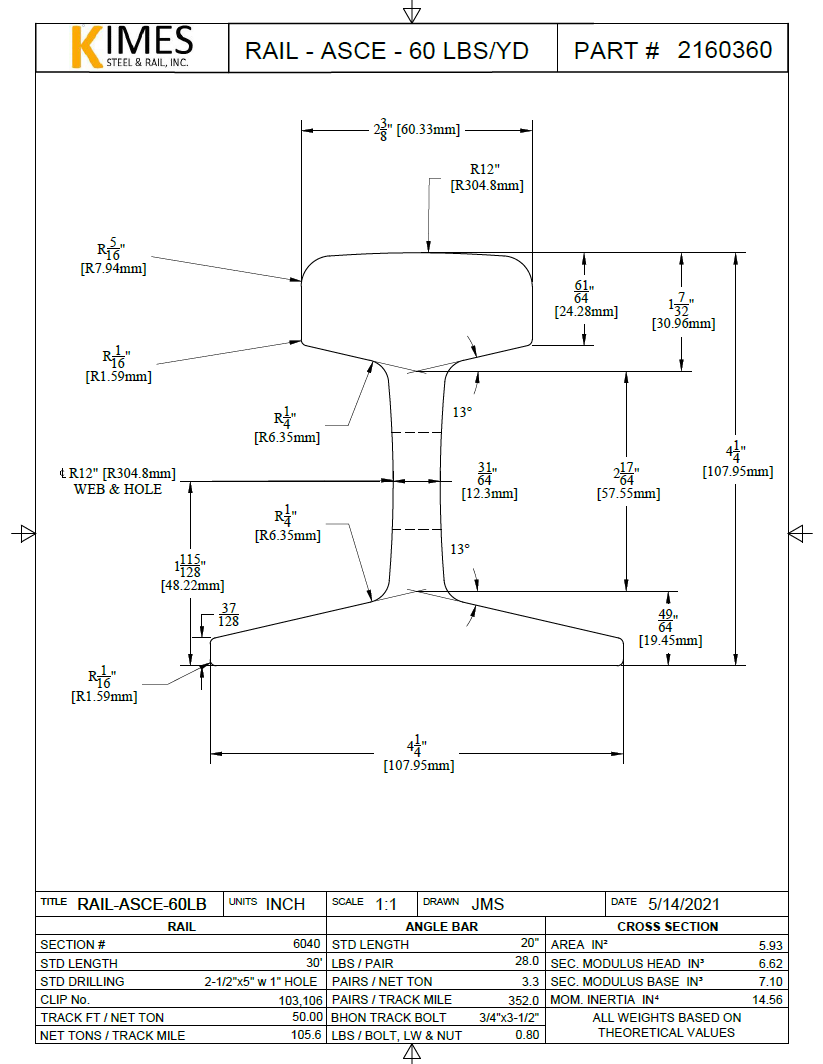

Dimensional drawing with dimensions in both metric (mm) and inches at the links below.
Dimensional Drawing PDF
CAD Model STEP
Specifications
Specifications
Origin: USA
Weight: 600 lb
Material: Steel
Height: 4.25 in
Width: 4.25 in
Depth / Length: 360 in
